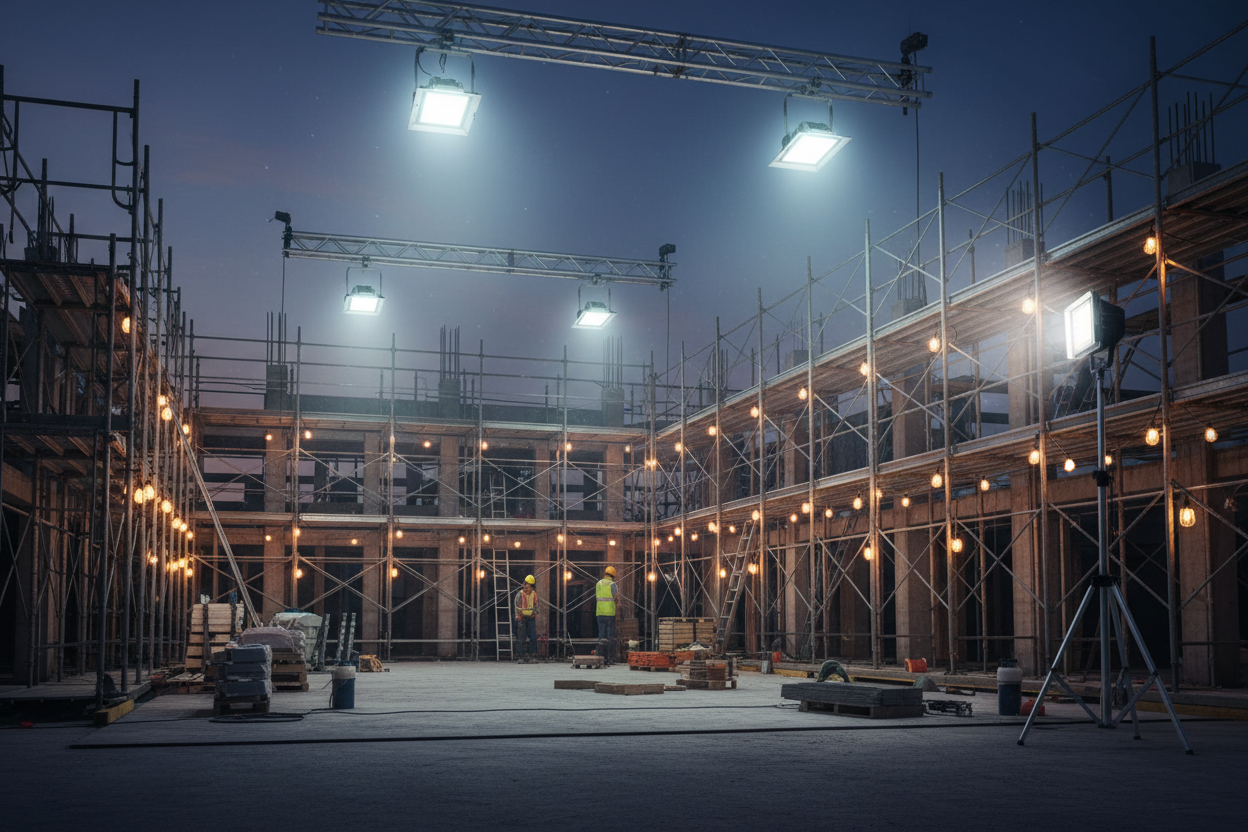

Lighting placement determines whether your job site is safe and productive or shadowed and hazardous. The same lights placed incorrectly can leave critical work areas dark while over-illuminating areas that don't need it. Here's how to place lighting for maximum visibility across every type of job site environment.
The Placement Principle: Illuminate the Work, Not the Space
The goal of job site lighting isn't to fill the space with light — it's to illuminate every active work area at the intensity needed for safe, accurate work. Map your work areas first, then place lights to cover them. Lights placed for general ambiance leave work areas in shadow; lights placed for specific work areas provide the coverage that matters.
Hanging Height: The Critical Variable
Hanging height determines both coverage area and shadow angle. Too high and the light covers a large area but at lower intensity; too low and the intensity is high but the coverage area is small and shadows are steep. For most job site work, hang the 100W LED temporary work light (12,000lm) at 8-10 feet above the work surface. This height provides broad, even coverage with minimal harsh shadows.
For high-bay environments, the 280W linkable LED work light (42,000lm) is designed for higher hang points — its output compensates for the greater distance to the work surface.
Overlap Coverage to Eliminate Shadows
Single-point lighting always creates shadows on the opposite side of any object or person. Overlap coverage from two or more lights eliminates most shadows by providing fill light from multiple angles. Position lights so their coverage areas overlap by 20-30% — the overlap zone receives light from both fixtures and has no shadows.
Linear Coverage: String Lights for Corridors and Scaffolding
For corridors, scaffolding runs, and perimeter areas, hanging work lights at intervals is less efficient than string lights. The 100ft LED construction string lights (150W, 15,000lm, linkable) provide consistent linear coverage along any run. Position them at the top of the work zone — above head height but below the ceiling or roof structure — for even illumination along the full length.
Fill Lighting for Corners and Recesses
Corners and recesses that overhead lighting can't reach need dedicated fill lighting. The rechargeable work light with remote control and stand (10,000lm, IP66) is the right tool for these areas — position it on its stand, aim it at the work area, and adjust with the remote without moving the light. Its battery power means no cord routing to difficult locations.
The Lighting Placement Walkthrough
Before work begins, walk every active work area and verify: no work surface is in shadow, all overhead lights are at the correct height, string lights cover all linear work zones, and fill lights are positioned in corners and recesses. This five-minute walkthrough prevents the visibility gaps that cause accidents and errors throughout the day.
